foam sandwich panel is a new type of building board. Widely used in construction, ships and other fields, it is an ideal material with both economical thermal insulation effect and good
Item NO.:
GZFSP-001Payment:
T/TProduct Origin:
ChinaColor:
CustomizedMin order:
10Product weight:
6000Lead Time:

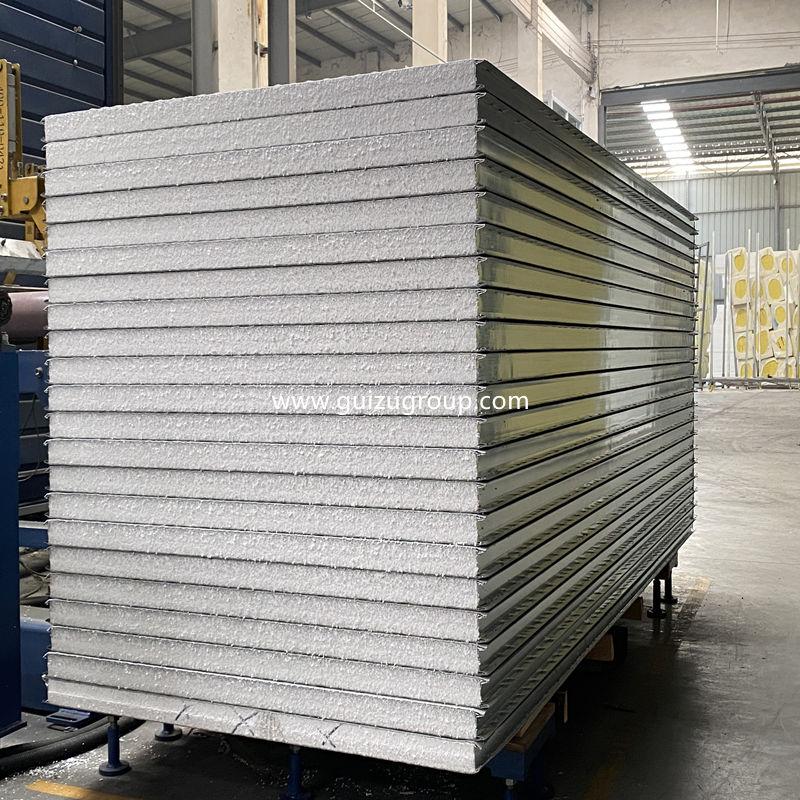

3-15 working dayEPS Insulation Sound Insulation Color Coated Steel Sandwich Panel
EPS sandwich panel performance full as the unique properties of EPS material, with high effect for water-resistance,
thermal insulation, acoustic insulation and other aspects.
EPS sandwich panel is a proven construction material well-suited to the extremes. It is a cost-effective, lightweight
construction material with excellent insulation properties.
EPS sandwich panel,which is also called foam sandwich panel or EPS insulated panel,and it's one combination of
steel sheets and EPS material. Compare to other sandwich panels,the main advantage of EPS sandwich panels is
ightweight and competitive price.
Product specifications
|
Suitable interface width |
950mm, 1150mm |
|
Thickness |
40mm-300mm |
|
Length |
No limit |
|
Surface protection |
PVC foil |
|
Effective width Wall panel |
950mm 1150mm 1200mm |
|
Roof panel |
950mm 980mm Length According to customer' s request |
|
Materials |
Polystyrene foam board(EPS), Color steel sheet |
|
Structure Upper and lower layer |
Color steel sheet |
|
Middle |
polystyrene foam board or polyurethane foam board |
|
Thickness Color steel sheet |
0.3-0.6mm |
|
Polystyrene foam board |
50mm 75mm 100mm 150mm 200mm |
|
The polystyrene density |
8-20kg/m3 |
|
lifetime |
15-20 years |
|
Character |
Light in weight, heat insulation, water resistant, |
|
Use |
various roofs and walls referring to the large size |
Application
Steel house, suburban housing, villa, kindergarten, Prefab house, apartment, commercial building, remodeling
of clean room, steel structure house, workshop, airport, cold storage, etc.

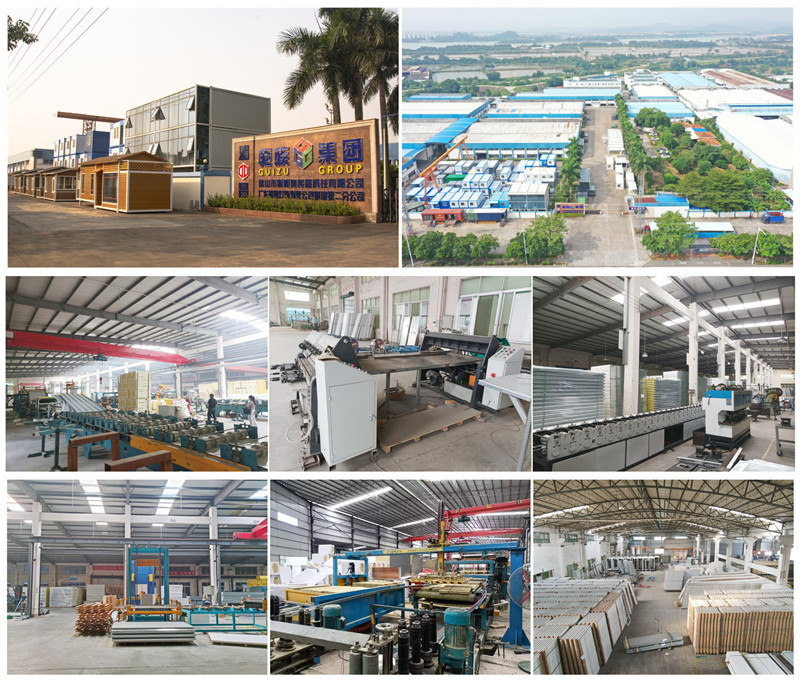

Factory strength
Guizu Group was founded in 2008, as a group company specializing in design, production of environmental
material, prefab house and steel structurer. It has more than 130 branches companies, warehouse, and factories,
Wide distribution in China &Southeast- Asia.Each production base is equipped with plate production lines,
welding assembly production lines, bending parts and accessories production lines such as doors, windows,
iron frame beds, etc. Our main products include: prefabricated houses, steel structurer material, sandwich panels,
doors, windows, iron framed beds, etc.
We are always committed to providing the best solutions of Residential and Commercial Buildings for customers
at home and abroad, and continue to win market favor with value-for-money cost-effective and considerate services.
Glass wool sandwich panel has the effect of sound insulation and heat insulation, making the whole more fire-proof, sound insulation and heat insulation functions.
K Type Portable Eps Sandwich Wall Panel Prefab House Product Specification widthlength OneFloor（3P） TwoFloor（6P） ThreeFloor（9P） 3K 4K 5K 3K 4K 5K 3K 4K 5K K 45.53 59.07 72.61 103.79 130.87 157.95 176.04 216.66 257.28 K 56.67 73.52 90.38 126.97 160.68 194.39 211.27 261.83 312.39 K 67.81 87.98 108.14 150.16 190.49 230.82 246.51 307.01 367.5 K 78.95 102.43 125.9 173.35 220.3 267.26 281.74 352.18 422.61 K 90.09 116.88 143.67 196.53 250.11 303.69 316.98 397.35 477.72 K 101.22 131.33 161.43 219.72 279.93 340.13 352.21 442.52 532.83 K 112.36 145.78 179.19 242.91 309.74 376.57 387.45 487.7 587.94 K 123.5 160.23 196.96 266.09 339.55 413 422.68 532.87 643.05 K 134.64 174.68 214.72 289.28 369.36 449.44 457.92 578.04 698.16 K 145.78 189.13 232.48 312.47 399.17 485.88 493.16 623.21 753.27 K 156.92 203.58 250.25 335.65 428.98 522.31 528.39 668.38 808.38 K 168.06 218.03 268.01 358.84 458.79 558.75 563.63 713.56 863.49 K 179.19 232.48 285.77 382.03 488.61 595.19 598.86 758.73 918.6 K 190.33 246.93 303.54 405.21 518.42 631.62 634.1 803.9 973.71 K 201.47 261.38 321.3 428.4 548.23 668.06 669.33 849.07 1028.82 K 212.61 275.84 339.06 451.59 578.04 704.49 704.57 894.25 1083.93 K 223.75 290.29 356.83 474.77 607.85 740.93 739.8 939.42 1139.04 K 234.89 304.74 374.59 497.96 637.66 777.37 775.04 984.59 1194.15 K 246.02 319.19 392.35 521.15 667.48 813.8 810.27 1029.76 1249.26 K 257.16 333.64 410.12 544.33 697.29 850.24 845.51 1074.94 1304.37 K 268.3 348.09 427.88 567.52 727.1 886.68 880.74 1120.11 1359.48 K 279.44 362.54 445.64 590.71 756.91 923.11 815.98 1165.28 1414.58 K 290.58 376.99 463.4 613.9 786.72 959.55 951.21 1210.45 1469.69 K 301.72 391.44 481.17 637.08 816.53 995.99 986.45 1255.63 1524.8 K 312.85 405.89 498.93 660.27 846.35 1032.42 1021.68 1300.8 1579.91 K 323.99 420.34 516.69 683.46 876.16 1068.86 1056.92 1345.97 1635.02 K 335.13 434.79 534.46 706.64 905.97 1105.3 1092.15 1391.14 1690.13 Floor Plan Installation Product Advantages Application Packing & Shipping
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc.Foldable container house is the newest container house now,it doesn't need any tools when you install also no more than 5 mins for installation.we have two designs for 40FT Container Homes, the first one is empty design,it can be 4 Bedroom container Houses, Mobile Container Houses or Living Folding Container House. another design is two bedrooms with one bathroom,the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand.If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Prefab homes expandable container house is the newest container house now. We have two designs for affordable portable prefab modular container, the first one is empty design, it can be luxury 2 Bedroom container homes or luxury prefab 3 bedroom container homes. Another design is two bedrooms with one bathroom, the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
A prefab container house that can be quickly expanded with an hour.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Container container dormitory building is the newest container house now. We have two designs for affordable portable prefab modular container, the first one is empty design, it can be low cost prefab mobile container dormitory or prefabricated temporary container house. Another design is two bedrooms with one bathroom, the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc. Customize design temporary building is the newest container house now. We have two designs for affordable portable prefab modular container, the first one is empty design, it can be portable tiny container house or prefabricated temporary container house. Another design is two bedrooms with one bathroom, the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand. If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.
apple cabin is a modular dwelling constructed off-site and delivered to the location as a complete unit. The compact design, features a rustic aesthetic and can accommodate several people. It comes equipped with a kitchen, bathroom, and sleeping area, making it an ideal option for minimalist living or weekend getaways.
