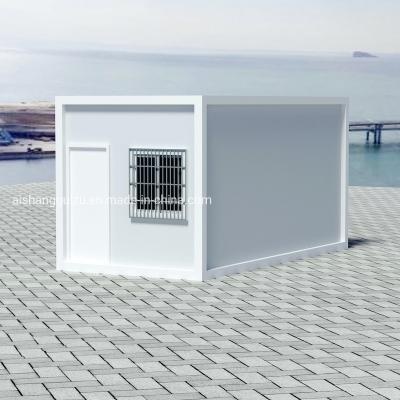

Prefab Flat Pack Container House with Sandwich Panel Wallboard

Guizu Group, Complete categories of products apply for multiple residences, commercial, and public scenarios such as offices, accommodations, dormitory, stores, Barbershops, toilets and bathrooms, etc.

Assembled prefab sandwich panel container house is the newest container house now. We have two designs for affordable portable prefab modular container, the first one is empty design, it can be prefabricated modular houses or prefabricated portable house. Another design is two bedrooms with one bathroom, the sanitary ware has been installed inside the house when you open, also the partition wall.we will send you the video for fixing,anyone can understand.

If you are scrupulous you will find that we there are some supports in the bottle of the container house, it is the important thing to keep the balance in the ground, so means you can adjust the balance if your land is not a flat base.

  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    Guangzhou
  • Min order:

    5
  • Product weight:

    1.2t-3.5t
  • Lead Time:

    30 Working Days

Prefab Flat Pack Container House with Sandwich Panel Wallboard

Product Description

The use of containers as a building material has grown in popularity over the past several years due to its inherent strength, wide availability, and relative low expense.Like light gauge steel construction, container homes are constructed of light steel frames and thermal insulation materials. It becomes a new type of energy efficient and sustainable house, which is easy and convenient to install.Container homes have also become popular in the market as they’re seen as more eco-friendly then traditional brick and cement builds.Container homes can be used for dormitory, staff quarters, store rooms, holiday villas, resort style accommodation, affordable housing, emergency shelters, school buildings, banks, medical clinics, multilayer apartment blocks, university accommodation. The simple and controlled construction and installation of all materials in the factory allow the builder or developer to minimize site installation times and disruption to the community.
Containers with creative ideas can not only be built into residences, but also commercial shops full of creativity. The original "plain" containers have been carefully crafted by the cabinet family and transformed into small shops full of individuality, allowing entrepreneurs to break the constraints of budget and space, while conveying the concept of low-carbon, environmentally friendly and fashionable life.


Sandwich Panel Container House

Technical Parameters

Description

Product name

Prefab house

Country of Origin

Guandong, China

Color

customized

Design

Flexible design

Materials

Steel and sandwich panel

Transportation

By sea

Brand

GUIZU

uses

residential and commercial

Frame

Welded/ Hot rolled H beam

Type

packing container, shipping container reconstruction or customized

Interior decoration

customized

Certification

SGS

Wall and Roof

EPS or glass wool panel

Window

PVC or Aluminum Alloy

Steel standard

Q235

Wind load

<35m/s

Earthquake resistance

7 fission resistant


Specification of Raw Materials

item

EPS

Glass Wool

TPS Board

Rock Wool

waterproof

★★★★★

★★★

★★★★★

★★★

fireproof

★★

★★★★★

★★★★★

★★★★★

Heat Insulation

★★★

★★★★

★★★★

★★★★

Sound Insulation

★★★★

★★★★

★★★★★

★★★★

Price Comparison

★★

★★★

★★

★★★★

Density Range

10-14kg/m3

100-120kg/m3

40-200kg/m3

100-250kg/m3


Accessories Name

Description

Ground Beam

14#/16# H-beam, 12# channel steel;
100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube;
120*120*3.0 / 150*150*3.0 bending parts

Pillar/Column

100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube;
120*120*3.0 / 150*150*3.0 bending parts

Floor beam

100*100*3.0 / 150*75*3.0 / 120*60*3.0 / 60*60*2.0 galvanized steel tube;
60*60*3.0 / 120*120*3.0 / 150*150*3.0 bending parts

Floor Purlin

8# channel steel;
80*80*2.0 / 50*100*2.0 / 40*80*2.0 galvanized steel tube

Stairs

150*30 C-type steel

Walkway Board

anticorrisive woods

External Wall

0.8mm/1.5mm/2.0mm Corrugated galvanized steel board;
0.46mm pre-painted galvanized steel board

Internal Wall

0.46mm / 0.36mm / 0.26mm pre-painted galvanized steel board

Roof Panel

0.8mm/1.5mm/2.0mm Corrugated galvanized steel board;
0.46mm pre-painted galvanized steel board

Edge

PVC capping seal, bamboo and woods fiber capping seal

Floor

Glass magnesium board, PVC composition tile, ceramic tiles

Window

Sliding window, casement window, hanging window, double-glazed glass windowthickness can be customized)

Door

Security door, plastic steel door, steel door, stainless steel door
